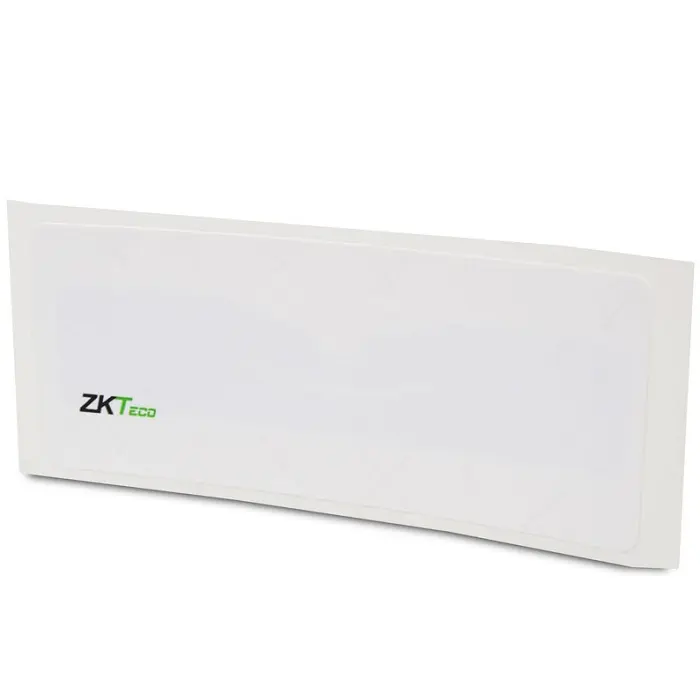

ZKTeco Ultra High Frequency Tag
UHF PARKING TAG
The ZKTeco UHF1-Tag4 is an ultra-high frequency (UHF) passive RFID sticker, primarily used for long-range access control and management of vehicles and goods. It is designed to be attached to the interior windshield of a car for parking lot applications.
Key specifications
- Working frequency: 860 MHz to 960 MHz
- Reading distance: Up to 10 meters (33 feet) with compatible ZKTeco readers like the UHF1-10E and UHF1-10F.
- Chip: Alien H3
- Protocol: ISO/IEC 18000-6C, EPC global Class 1 Gen 2
- Memory: 800 bits total capacity, with a flexible storage structure
- EPC: 96 bits
- User: 512 bits
- Password: 64 bits (32-bit kill password and 32-bit access password)
- Durability: Data storage period of 10 years and erase endurance of 100,000 times.
- Working mode: Passive (no battery required)
- Installation: Adhesive design for easy mounting on a windshield.
- Security: Features an anti-tear design that destroys the tag if removed.
- Dimensions: 96.5 x 23.2 mm.
Typical applications
The UHF1-Tag4 is commonly used in these scenarios:
- Vehicle management: For long-distance fixed vehicle access control, such as in parking lots or gated communities.
- Goods management: Tracking the movement and inventory of goods over a long-distance scanning area.
- Toll collection: Managing toll collection on highways and bridges.
