ZkTeco IP Based Fingerprint Terminal
SF100

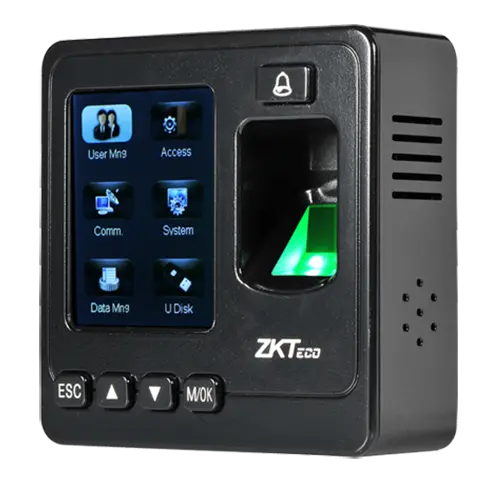

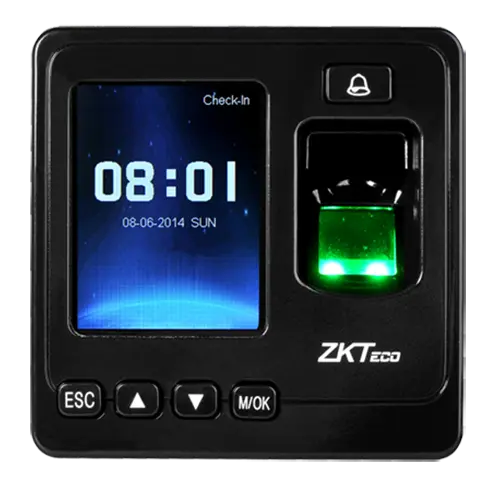

The ZKTeco SF100 is an IP-based fingerprint terminal used for access control and time attendance. It can operate in network and standalone modes and features multiple functions for security and employee management.
Key features
- Authentication methods: The SF100 verifies users through fingerprints and optionally via ID/Mifare cards.
- Operating modes: Can be used in network mode to connect with management software, or in standalone mode for simple access control.
- Advanced security: Supports an anti-passback function and a master/slave solution that requires user verification at both entry and exit points.
- Auxiliary input: Includes an auxiliary input interface for connecting to external devices such as a smoke detector or an emergency switch.
- Interface: Features a 2.4-inch TFT color screen for easy navigation and user management.
Specifications.
- Fingerprint capacity: 1,500
- Card capacity: 5,000 (optional, EM/Mifare)
- Log capacity: 80,000 records
- Communication: TCP/IP, RS485, USB Host
- Access control interface: Electric lock, door sensor, alarm, exit button, doorbell
- Wiegand signal: Wiegand input and output
- Power supply: DC 12V/3A
- Dimensions (W x L x H): 90 x 90 x 34.5 mm
Use cases
- Office buildings: Manage employee attendance and control access to restricted areas.
- Schools and banks: Secure entrances and monitor traffic in high-security zones.
- Government facilities: Record and manage time attendance for official personnel.
- Factories and warehouses: Track employee presence and restrict access to specific production or storage areas.
