ZkTeco QR Codes and RFID Cards Reader
QR50BE

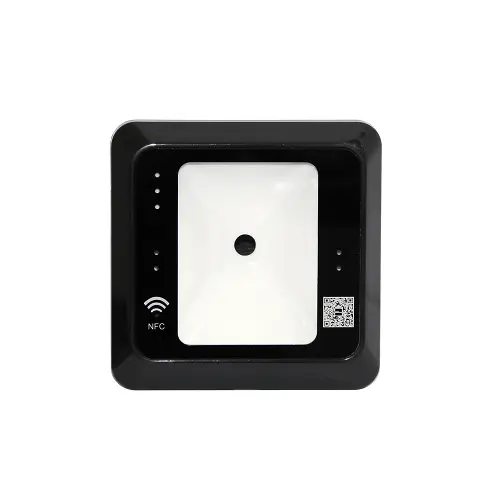

The ZKTeco QR50BE is an
intelligent access control reader that can identify both QR codes and 125kHz EM-Marine RFID cards. The device has a black plastic casing and is designed for flush mounting. It is compatible with any access control system that supports Wiegand input and is also able to communicate using the ZKTeco RS485 protocol.
Key features
- Dual-mode identification: The reader can identify users via QR codes (including static and dynamic types) or 125kHz EM-Marine RFID cards, key fobs, and bracelets.
- Wide compatibility: It can connect to any access control controller that supports Wiegand input. It also features an RS485 interface for communication with ZKTeco controllers.
- Rapid recognition: Designed for fast scanning speed and a high recognition rate.
- Multiple code formats: It can read a wide range of barcode formats, including QR, Data Matrix, PDF417, EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code 39, Code 93, and CodaBar.
- Status indication: The reader has a two-color LED and provides sound feedback to indicate the access status.
- Versatile applications: Suitable for various scenarios, including community and visitor management, hotels, and unmanned supermarkets.
Technical specifications
- Communication: Wiegand, RS485, and USB (for firmware updates only)
- Power supply: DC 12V (±5%) or USB 5V
- Operating frequency: 125kHz
- Reading distance:
- QR code:
≥5is greater than or equal to 5≥5 cm - RFID card: ≥4is greater than or equal to 4≥4 cm
- QR code:
- Identification angle: 360° rotation, ±45° tilt
- Operating temperature: $-20^\circ$C to $60^\circ$C
- Dimensions: 86×86×5086 cross 86 cross 5086×86×50 mm
- Color: Black
