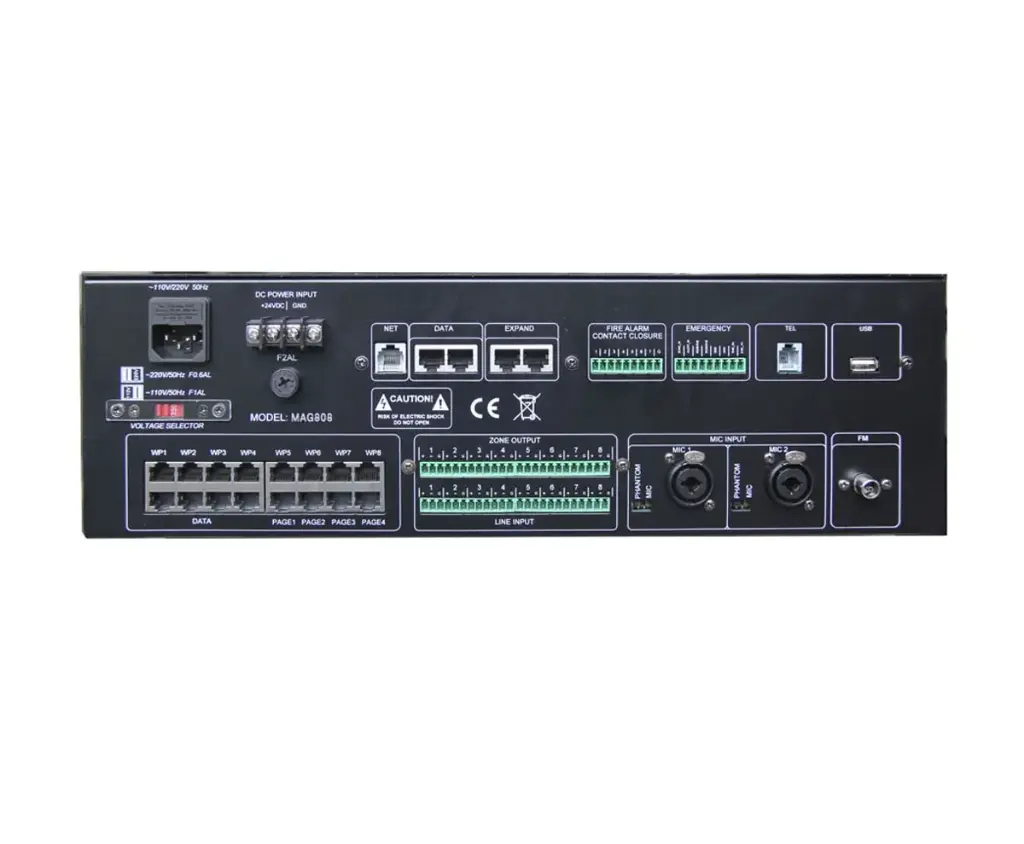

DSPPA MAG808 - 8x8 Digital Audio Matrix
DSPPA MAG808 is a high-performance 8x8 digital audio matrix with zone control and paging functions, designed for professional AV installations in multi-zone environments. It integrates audio matrix, timing control, zone management, MP3 playback, and FM radio in one unit. The built-in 7" capacitive touch screen and embedded operating system ensure intuitive and efficient operation.
The matrix features 8 balanced audio inputs and 8 balanced outputs, two microphone inputs with phantom power, telephone input, emergency input, 8 zone-trigger inputs, and one emergency output. It supports remote control via wall panels, paging microphones, PC, and Android devices. With 8 GB of internal storage and support for up to 32 GB, it allows flexible audio management and system configuration.
MAG808 is a complete solution for venues such as shopping malls, hotels, airports, sports centers, and entertainment facilities requiring reliable multi-zone audio control.
Functionality:
- 8 balanced audio inputs and 8 balanced outputs
- 2 microphone inputs with phantom power (+48V)
- built-in MP3 player (USB) and FM tuner
- telephone input with access management
- emergency input and one-touch alarm function
- 8 zone-trigger inputs, 1 emergency output
- remote control via MAG808C/MAG808S panels, MAG808R microphones, PC, Android
- 7" capacitive touch screen with color display
- built-in DSP and 10M/100M/1000M Ethernet interface
- built-in zone monitoring
- internal 8 GB storage, supports up to 32 GB
- power supply: AC 110/220V and DC 24V
Features:
- MIC frequency response: 80 Hz - 10 kHz (±3 dB)
- line frequency response: 20 Hz - 20 kHz (±3 dB)
- input sensitivity: MIC 10 mV, AUX 250 mV
- output voltage: 1 V
- FM band: 86-108 MHz
- output distortion: <1% @ 1 kHz
- max output noise: <3 mV
- dimensions: 484 x 375 x 132 mm
- packing size: 540 x 510 x 195 mm
- net weight: 10 kg
- gross weight: 13 kg
DSPPA MAG808 is a reliable audio matrix for demanding AV installations, offering full zone control, emergency integration, and flexible remote operation.
