ZkTeco Waterproof Fingerprint Reader
FR1200

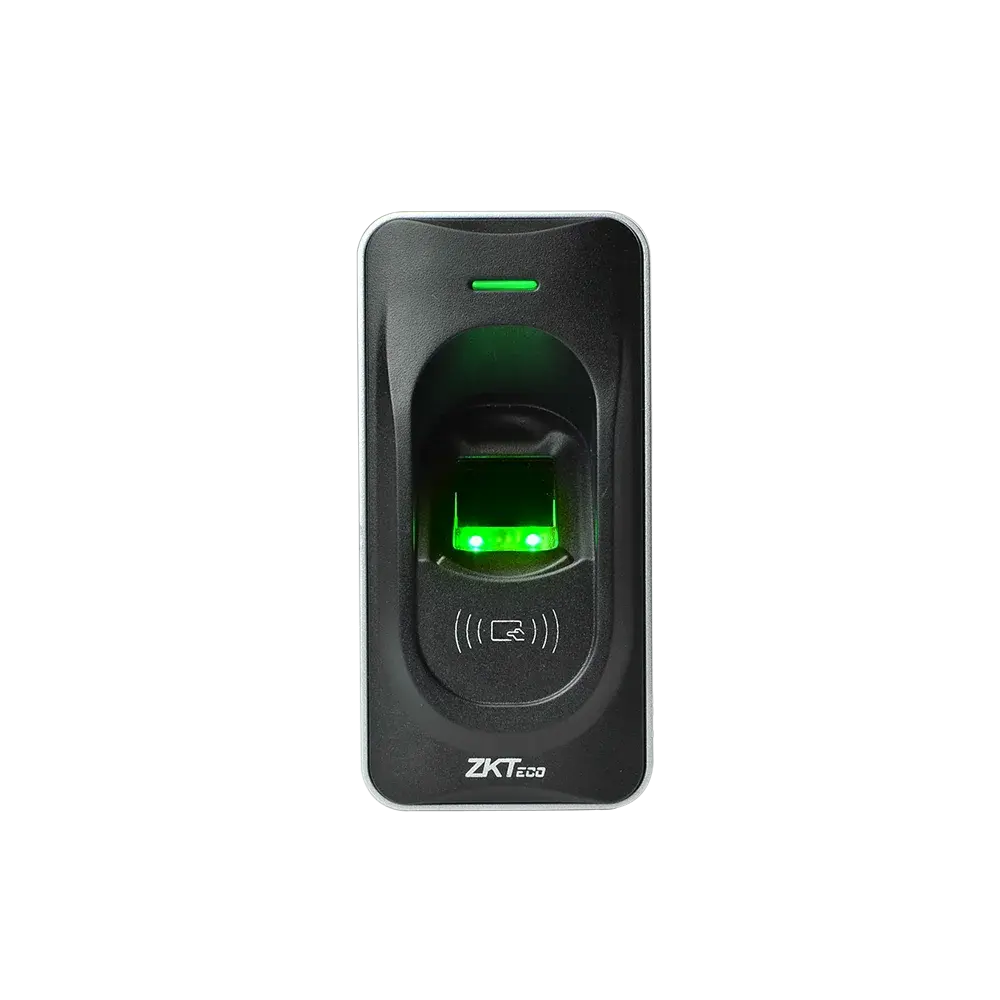

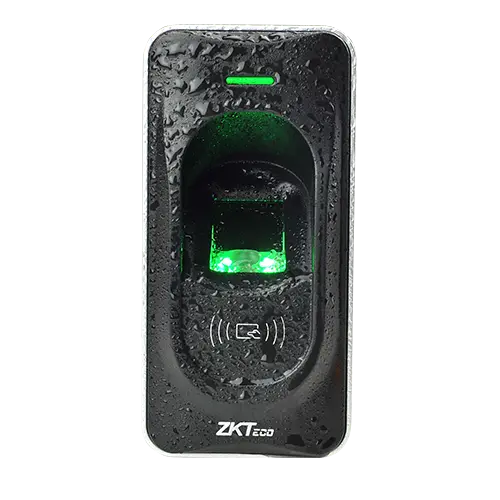

The ZKTeco FR1200 is an external fingerprint and RFID card reader used as a slave device in access control systems. Featuring an IP65-rated weatherproof casing, it is built for use in both indoor and outdoor environments.
Features and specifications
- Sensor: The device is equipped with a ZK small-sized optical fingerprint sensor and runs on the ZKFinger VX10.0 algorithm for high-accuracy biometric authentication.

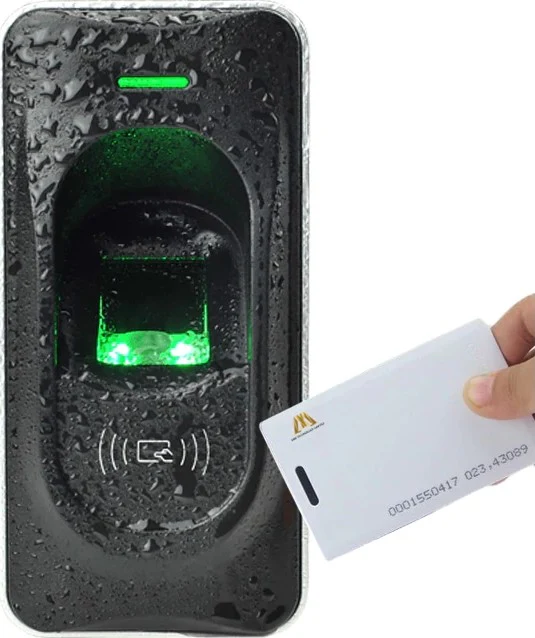

- Card authentication: It comes standard with a 125 kHz ID card module but also offers an optional 13.56 MHz IC card module.

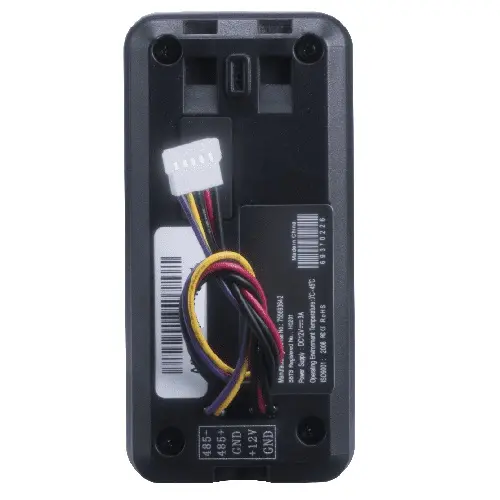

- Communication: It connects to a master controller or terminal via an RS485 communication interface. Some versions also support the OSDP (Open Supervised Device Protocol).
- Compatibility: The FR1200 is designed to work with ZKTeco's InBio Pro series and other biometric access controllers and standalone access control terminals.
- Security: Data transmitted from the reader is protected with AES128 encryption, though this can be disabled via software for specific deployment needs.
- Indicators: It provides visual and audible feedback for access acceptance and rejection using an LED and a buzzer.
- Dimensions:
- Length: 102 mm
- Width: 50 mm
- Height: 37 mm
- Power supply: Requires a 12V DC power source.
- Mounting: Supports both wall and mullion mounts.
Use cases
- Enhanced security: By adding biometric authentication (fingerprint recognition) to an existing RFID card system, the FR1200 increases the security of a controlled area.
- Indoor/Outdoor installation: The IP65 rating makes it suitable for both indoor use and protected outdoor areas where it might be exposed to the elements.
- New or existing systems: It can be used for new access control system installations or as an upgrade to add biometric capabilities to existing ZKTeco systems.
Important considerations
- Does not work independently: The FR1200 is a "slave" device, meaning it must be connected to a master controller or access terminal to function. It cannot store user data or grant access on its own.
- Power adapter not included: The device typically does not come with a power adapter, so a compatible 12V DC power supply must be purchased separately.
- Configuration: The full system requires a compatible ZKTeco controller (like the inBIO series) and additional accessories, such as an exit button or emergency break glass.
