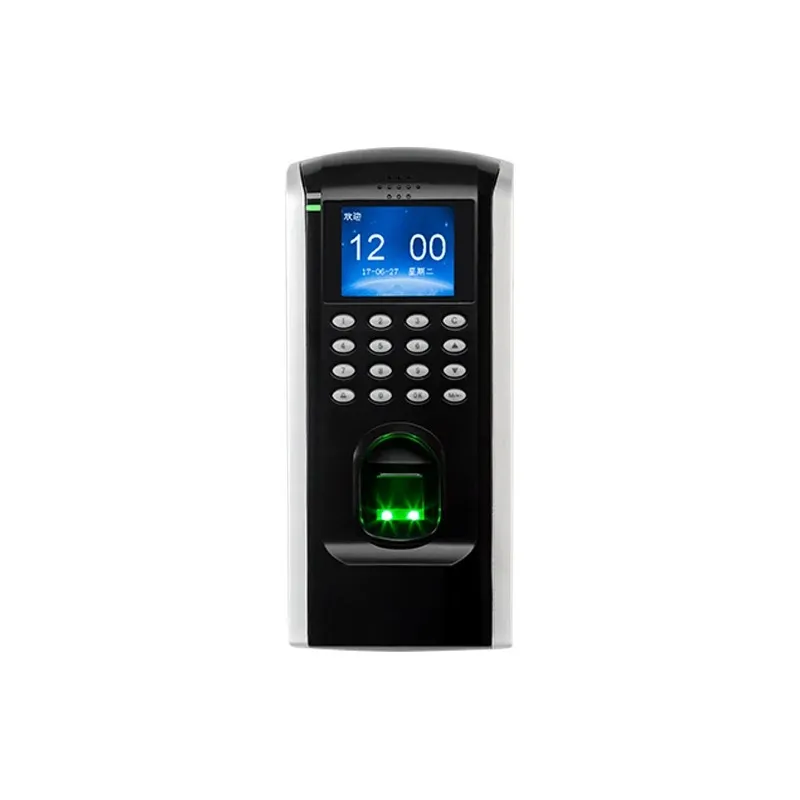

ZkTeco Fingerprint and EM RFID Cards Terminal
F7-C
The ZKTeco F7-C is a biometric fingerprint terminal designed for both time and attendance tracking and access control applications. It can operate as a standalone device or be integrated into a larger security system.
Overview
The F7-C is a networked device that features a durable ZK Optical Sensor for fast and accurate fingerprint recognition. Depending on the model, it also supports optional ID card recognition. The device can be used with ZKTeco's ZKAccess 3.5 software for management, or integrated with third-party systems using its Wiegand output.
Key features
- Multiple operational modes: Works in standalone mode using a built-in keypad and display, or can be networked via TCP/IP, RS485, or optional Wi-Fi.
- Time and attendance functions: Includes features like automatic status switching, scheduled bells, and DST support.
- Security features: Enhances security with a tamper-proof switch, alarm outputs, and an anti-passback function when paired with a slave reader. It also supports duress alarms.
- Interface for third-party systems: Connects to other access control equipment via its electric lock, door sensor, exit button, alarm, and Wiegand interfaces.
- User and data capacity: Stores up to 2,200 fingerprint templates and 50,000 to 100,000 transaction logs, depending on the model.
Technical specifications
| Feature | Specification |
|---|---|
| Display | 2-inch color screen |
| Fingerprint sensor | ZK Optical Sensor (500DPI) |
| Algorithm | ZKFinger VX10.0 (or VX) |
| Communication | TCP/IP, RS485, optional WiFi |
| User capacity | 2,200 fingerprint templates |
| Card capacity | 5,000 (Optional, depending on model) |
| Record capacity | 50,000 to 100,000 transactions |
| Dimensions (L x W x H) | 105 x 105 x 32 mm |
| Power supply | DC 12V/3A |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
Installation and use
For a proper and safe installation, the user manual recommends the following:
- Cut off power before wiring.
- Connect the ground wire first.
- Mount the unit at a comfortable height, typically 4 to 5 feet from the floor.
- Power the device last, after all other wiring is complete.
- Use only a 12V DC 1.5Amp power supply.
Users can be enrolled using fingerprints or a password. The device will then use audio and visual cues to indicate whether a fingerprint is accepted or rejected. If configured, the F7-C can also provide real-time data export for time and attendance tracking.
