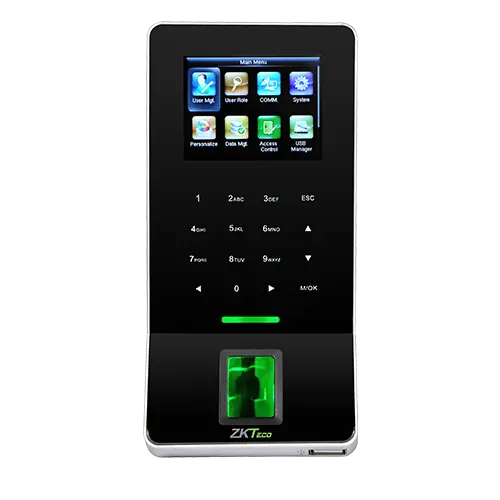

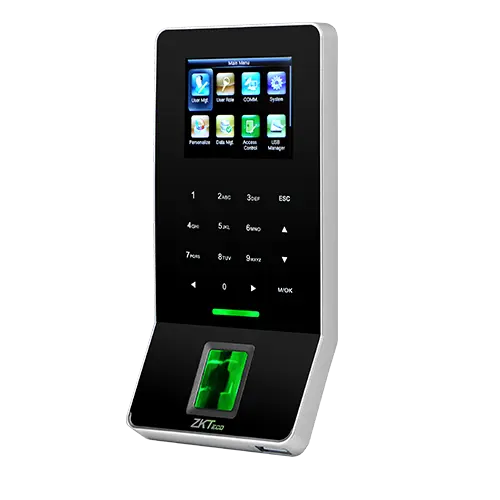

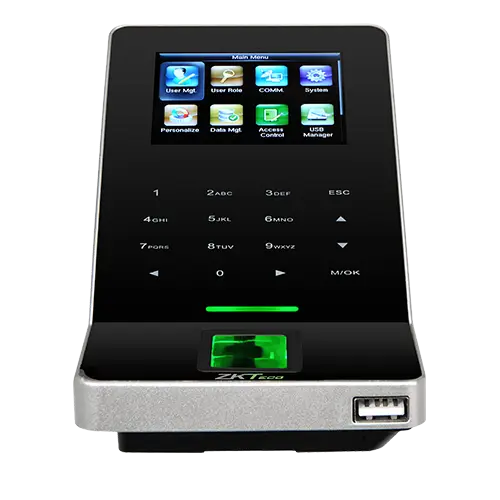

ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi
F22
The ZKTeco F22 is an ultra-thin, biometric terminal used for time attendance and access control. It features a BioID fingerprint sensor, a 2.4-inch color LCD screen, and a touch keypad. The device is designed for easy installation and is suitable for various applications, including offices, factories, and other institutions.
Features and functions
- Sensor: High-performance, high-image quality infrared detection fingerprint sensor. It uses an advanced algorithm for fast, precise, and reliable matching speed.
- Communication: Connects via Wi-Fi, TCP/IP, USB host, or RS485.

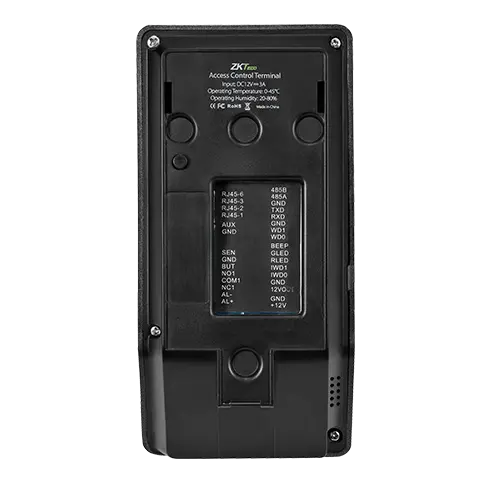

- Access control: Includes a full range of access control features such as an anti-passback function and an interface to connect with a third-party electric lock, door sensor, exit button, or alarm. It can operate as a standalone device or be connected to a separate access control panel that supports a standard Wiegand signal.
- Time attendance: Records employee attendance via fingerprint or optional RFID/IC cards. The device's capabilities include an automatic status switch, scheduled bell, and record query.
- Software: Compatible with ZKTeco's ZKBioAccess software, which can generate reports for time attendance, including work shifts, overtime, and late arrivals.
- Display: Features a 2.4-inch TFT LCD color screen and sensitive touch keypad for a superior user experience.
Specifications
According to the official specifications provided by ZKTeco:
- Dimensions: 158.5 x 78.0 x 19.4 mm (L x W x H).
- Fingerprint capacity: 3,000 templates.
- Card capacity: 5,000 (optional ID or IC cards).
- Transaction capacity: 30,000 logs.
- Power supply: 12V DC, 3A.
- Operating temperature: 0 °C to 45 °C.
- Operating humidity: 20% to 80%.
