1/3” Color Door Camera With Access Control 8 Apartment
DRC-8ML-RF1

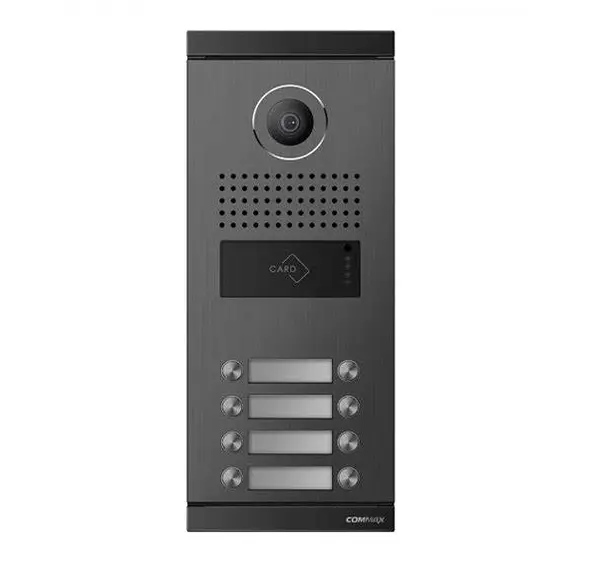

The Commax DRC-8ML/RF1 is an eight-button door station with a built-in camera and an RF card reader for access control. The unit is a multiple-gateway camera designed for up to eight apartments in a multi-unit dwelling.
Specifications
| Feature | Detail | ||
|---|---|---|---|
| Model | DRC-8ML/RF1 | ||
| Power supply | DC 12V / 1A | ||
| Number of apartments | Up to 8 | ||
| Wiring | 4 wires | ||
| RF card type | Mifare Card | ||
| RF card frequency | 13.56 MHz | ||
| Camera sensor | C-MOS (Pin-hole type) | ||
| Viewing angle | Horizontal: 75°, Vertical: 55° (Note: Other sources list 82°) | ||
| Minimum illumination | 0.1 Lux (up to 300mm) | ||
| Dimensions (mm) | 130(W) x 315(H) x 50(D) | ||
| Distance (wiring) | 28m (0.5Φ), 50m (0.65Φ) | ||
| Operating temperature | -20°C to +50°C (Other sources list -20°C to +40°C) | ||
| Housing | Metal shel |
Features
- Vandal-proof: It features an aluminum die-cast housing designed for durability and resistance against vandalism, rain, and dust.
- Night vision: A built-in white LED provides lighting for clear visibility in low-light conditions.
- RF card registration: Master cards can be registered and deleted using the control buttons on the unit. Up to 2,046 RF cards can be registered.
- Door release contact: The unit includes 2 ports for connecting a door release mechanism.
