COMMAX, Outdoor Camera Panel For 4 Apartment
DRC-4AC2

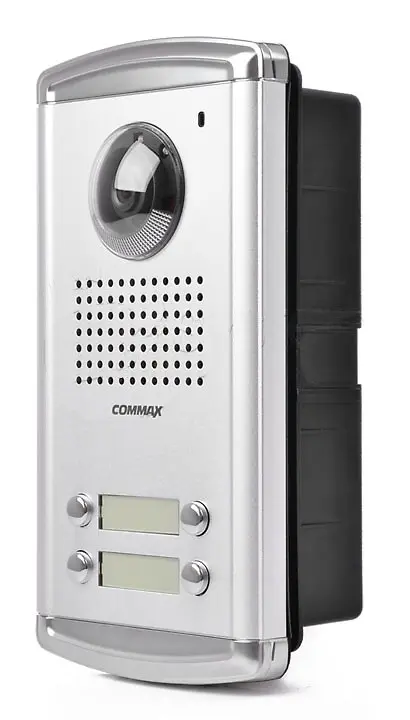

The COMMAX DRC-4AC2 is a 4-button, flush-mounted, color video door camera unit for multi-apartment buildings. It is designed to work with compatible Commax Fine View series video doorphones.
Key features
- Capacity: The camera has four individual call buttons, allowing it to connect to and serve up to four separate apartment units.
- Video and audio: It provides a color video feed and two-way voice communication, enabling residents to see and speak with visitors.
- Door lock release: The system can be integrated with an electric door strike, allowing residents to remotely open the door for visitors.
- Durable construction: The camera is housed in an aluminum casing to protect it from varying weather conditions.
- Compatibility: It is designed to work with various Commax Fine View series video doorphones, such as the CDV-35A, CDV-43U, CDV-70K, and CDV-70U.
- Installation type: The unit is designed for flush-mounted installation, which provides a clean and integrated look.
Specifications
The DRC-4AC2 features include a 1/4" Color CCD image sensor, operates on DC12V power. It uses a 4-wire installation system to each videophone and 2 wires for the electric door strike. The video standard is NTSC, with a minimum illumination of 0.1 Lux, a horizontal view angle of 68º, and a vertical view angle of 55º. It is designed to function in temperatures between -10ºC and 50ºC. The dimensions are 235mm (H) x 125mm (W) x 16mm (D), with a recessed depth of 59mm.
Components required for a full system
The DRC-4AC2 is the outdoor camera unit only and requires additional components for a complete video intercom system. Each apartment unit needs a compatible video monitor from the Commax Fine View series, such as the CDV-43U. A separate DC12V power supply, like the Commax RF-1A or RF-12015S, is also necessary. An electric door strike is needed to enable the remote door release function.
