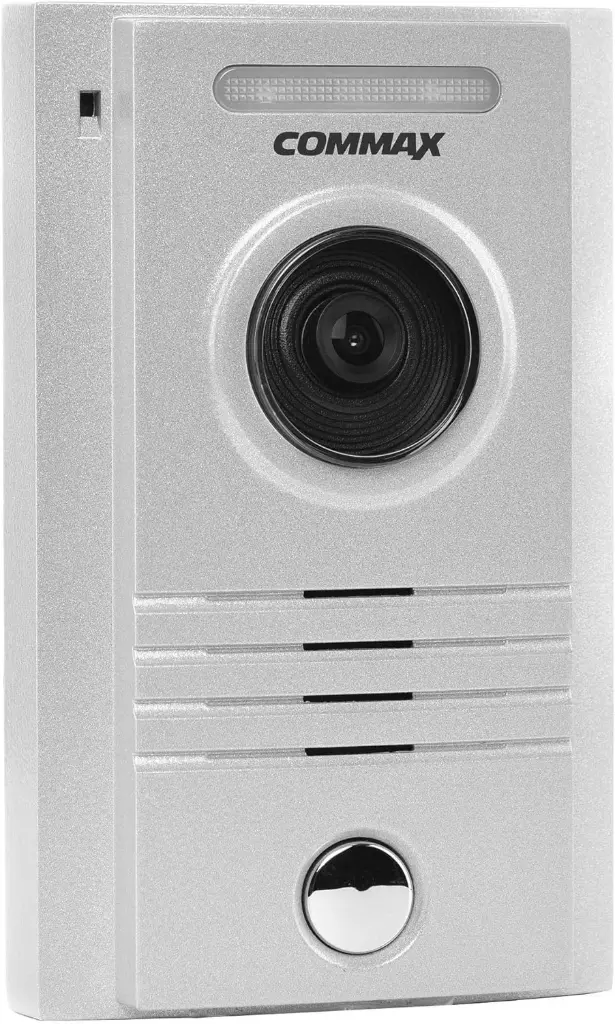

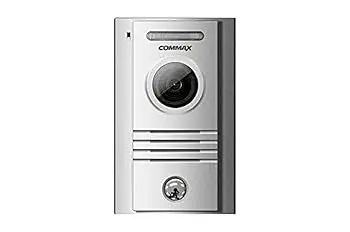

Commax 1.3M Pixel Color Door Camera Metal Case 1line
DRC-40K
The COMMAX DRC-40K is a wall-mounted video door camera designed for residential and commercial intercom systems. It features a color CMOS sensor and built-in white LED illumination, which automatically activates in low-light conditions to provide clear video footage.
Key features
- Video and image quality: The camera provides 540 TV lines (TVL) resolution with a color C-MOS sensor for crisp and detailed imaging.
- Viewing angle: It offers a wide viewing angle of 75° horizontal and 55° vertical, with a ±12° adjustable vertical angle to ensure optimal positioning.
- Night vision: An embedded white LED, controlled by an illuminance sensor, provides clear visibility even in the dark.
- Audio communication: The unit allows for simultaneous, two-way audio communication with visitors.
- Door lock control: It supports the ability to release an electric door lock.
- Housing and installation: The camera is housed in a durable metal case and is a surface-mounted type. It is suitable for outdoor use but is not waterproof.
- Wiring: It uses a 4-wire connection to a compatible COMMAX indoor monitor and a 2-wire non-polar connection for the electric door lock.
- Compatibility: The DRC-40K is compatible with all 4-wire COMMAX indoor stations. It is often sold as part of a kit with monitors like the CDV-43K or CDV-70M.
Specifications
- Power source: DC 12V (supplied from the monitor)
- Video transmission standard: NTSC or PAL
- Minimum illumination: 0.1 Lux (within 300mm)
- Operating temperature: -10°C to +40°C
- Dimensions: 96(W) x 155(H) x 32.5(D) mm
- Weight: 400g
