ZkTeco Electromagnetic Lock Z&L Bracket
LMB-280ZL
The ZKTeco

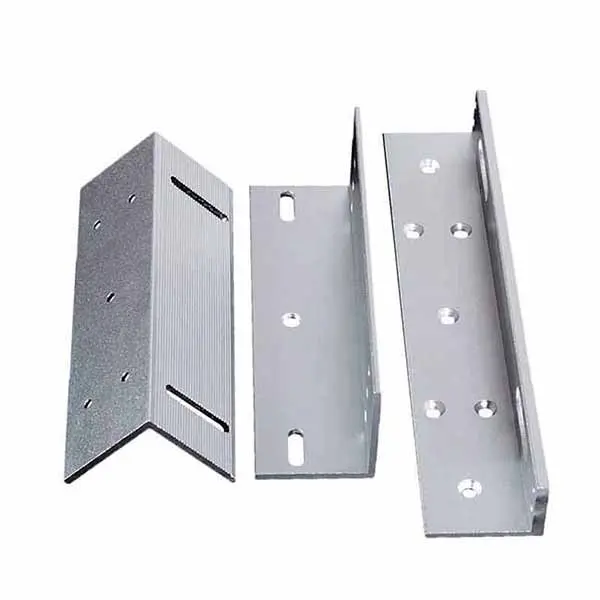

LMB-280ZL is a Z and L bracket used for mounting electromagnetic locks, not an electronic device with a datasheet detailing voltage or wiring. It is an accessory specifically designed for the ZKTeco LM-2802 and LM-2805 electromagnetic locks, which hold up to 280 kg.
The datasheet for the compatible LM-2802 or LM-2805 locks contains the technical specifications, which are summarized below.
ZKTeco LM-2802 / LM-2805 electromagnetic lock specifications
These specifications are for the electromagnetic locks compatible with the LMB-280ZL bracket, according to a product catalog.
| Specification | Detail |
|---|---|
| Operating voltage | DC12V |
| Operating current |  450mA±5%450 m cap A plus or minus 5 %450𝑚𝐴±5% |
| Tensile force range | 200kg±5%200 k g plus or minus 5 %200𝑘𝑔±5% |
| Temperature rise | +15°Cpositive 15 degrees cap C+15°𝐶 (ambient temperature of 29°C; 6 hours after DC 12V is energized) |
| Wiring interface | * Red: + * Black: - * Yellow: NO (Normally Open) * Green: COM (Common) * White: NC (Normally Closed) |
| Dimensions (lock body) | 250×47×25.5mm250 cross 47 cross 25.5 m m250×47×25.5𝑚𝑚 (W x H x D) |
| Dimensions (iron plate) | 180×38×11mm180 cross 38 cross 11 m m180×38×11𝑚𝑚 (W x H x D) |
| Gross weight | 1.77kg1.77 k g1.77𝑘𝑔 |
bracket features
| Specification | Detail |
|---|---|
| Compatibility | Designed for use with inward-opening doors with the LM-2802 and LM-2805 electromagnetic locks. |
| Material | Anodized aluminum. |
| Installation | Makes it easy to install the iron plate on inward-opening doors, including wooden, metal, and fireproof types. |
| Bracket size | A combination of the LMB-280Z and LMB-280L brackets. |
| Weight | 0.88kg0.88 k g0.88𝑘𝑔. |
