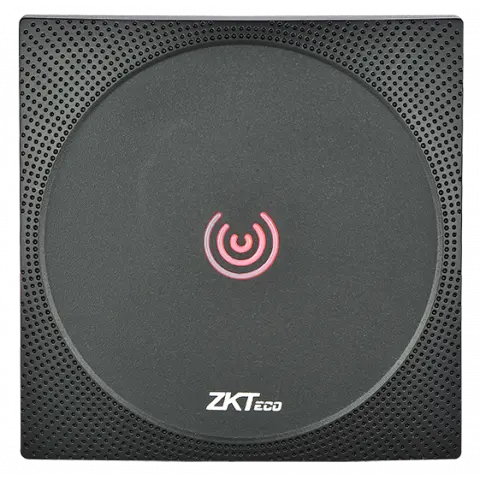

ZkTeco External Proximity Reader
KR601-E
The ZKTeco KR601-E is an external, waterproof RFID card reader designed for integration with access control systems. It is part of the ZKTeco KR600 series of readers and is suited for both indoor and outdoor use.
Key features
- RFID technology: Operates at a frequency of 125 kHz to read EM cards. Some retailers state dual-frequency support for both 125 kHz (EM) and 13.56 MHz (Mifare), so it's important to check the specific model.
- Output format: Uses a 26-bit Wiegand output by default, with an option for 34-bit or RS485/232 customization on certain models.
- Durability: The housing is made of ABS and PC with a textured finish. It has an IP65 ingress protection rating, making it waterproof and suitable for harsh weather conditions.
- LED and buzzer: Features red and green LEDs for visual access indication and an audible beeper for status feedback.
- Reading distance: Can read cards from up to 10 centimeters away.
- External control: Includes external input ports to control the LED and buzzer.
- Compatibility: Easily integrates with ZKTeco access controllers, such as the C3 and InBio series, and other compatible access control systems.
Technical specifications
| Feature | Details | |
|---|---|---|
| Read range | Up to 10 cm | |
| Frequency | 125 kHz (EM), with some models also supporting 13.56 MHz (Mifare) | |
| Output format | 26-bit Wiegand (default), with other options available on some models | |
| Power supply | DC 6–14V, maximum 70mA | |
| Operating temperature | -20°C to 65°C | |
| Operating humidity | 10% to 90% relative humidity, non-condensing | |
| Ingress protection | IP65 | |
| Dimensions | 86mm x 86mm x 16mm (approx.) | |
| Material | ABS and PC with texture |
Common applications
The ZKTeco KR601-E is used in various security applications for controlling access to doors and gates. It is a reliable choice for secure access control in residential and commercial environments.
