ZKTeco Series Barrier Gates with LED
BGM1045 (L/R)

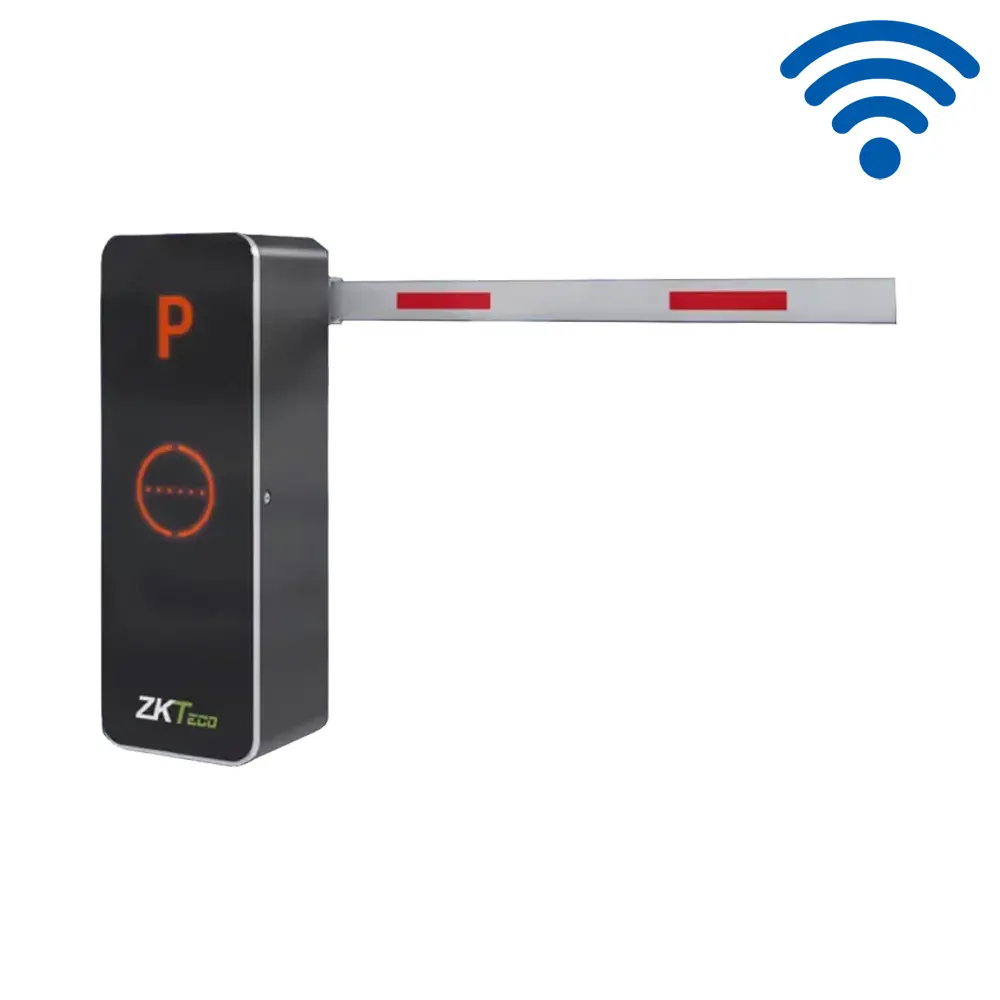

The zk BGM1045 (L/R) is a model designation for an automated barrier gate system from the ZKTeco BG1000 series, designed to control vehicle access. The L/R indicates that the unit can be configured with the barrier arm on either the left or right side.
Specifications
- Boom arm: A straight telescopic boom arm with a length of 4.5 meters.
- Operating speed: 3 seconds. Other sources may list different speeds, depending on the arm length or variant.
- Motor: 24V brushless DC motor.
- Power: Can be powered by AC 220V/50Hz (default) or AC 110V/60Hz (optional).
- Chassis: Features an interactive LED chassis design.
- Durability: The motor is rated for 3 million mean cycles between failures (MCBF).
- Protection: Rated IP54, providing resistance to dust and water.
- Temperature range: Operates in a wide temperature range, from -35°C to 70°C.
- Chassis dimensions (W×L×H): 350 × 300 × 1020 mm.
- Chassis weight: 45 kg.
- Remote control distance: A maximum of 30 meters.
Features
- Interactive LED display: The gate chassis features an LED light system for improved visibility and status alerts.
- Flexible installation: The direction of the boom arm can be reversed on-site to accommodate different installation requirements.
- Mobile app control: Supports the ZKBarrier app for parking management, allowing control from up to five mobile phones.
- High integration capability: Can be integrated with access control systems, ticketing systems, and vehicle detection sensors.
- Safety features: Includes automatic obstruction detection to prevent accidents and damage to vehicles.
- Adjustable settings: Boom length, opening/closing speed, and opening/closing angles can be configured on-site.
- Energy efficient: Features a low-power consumption design.
